Description
Specifications
MODEL

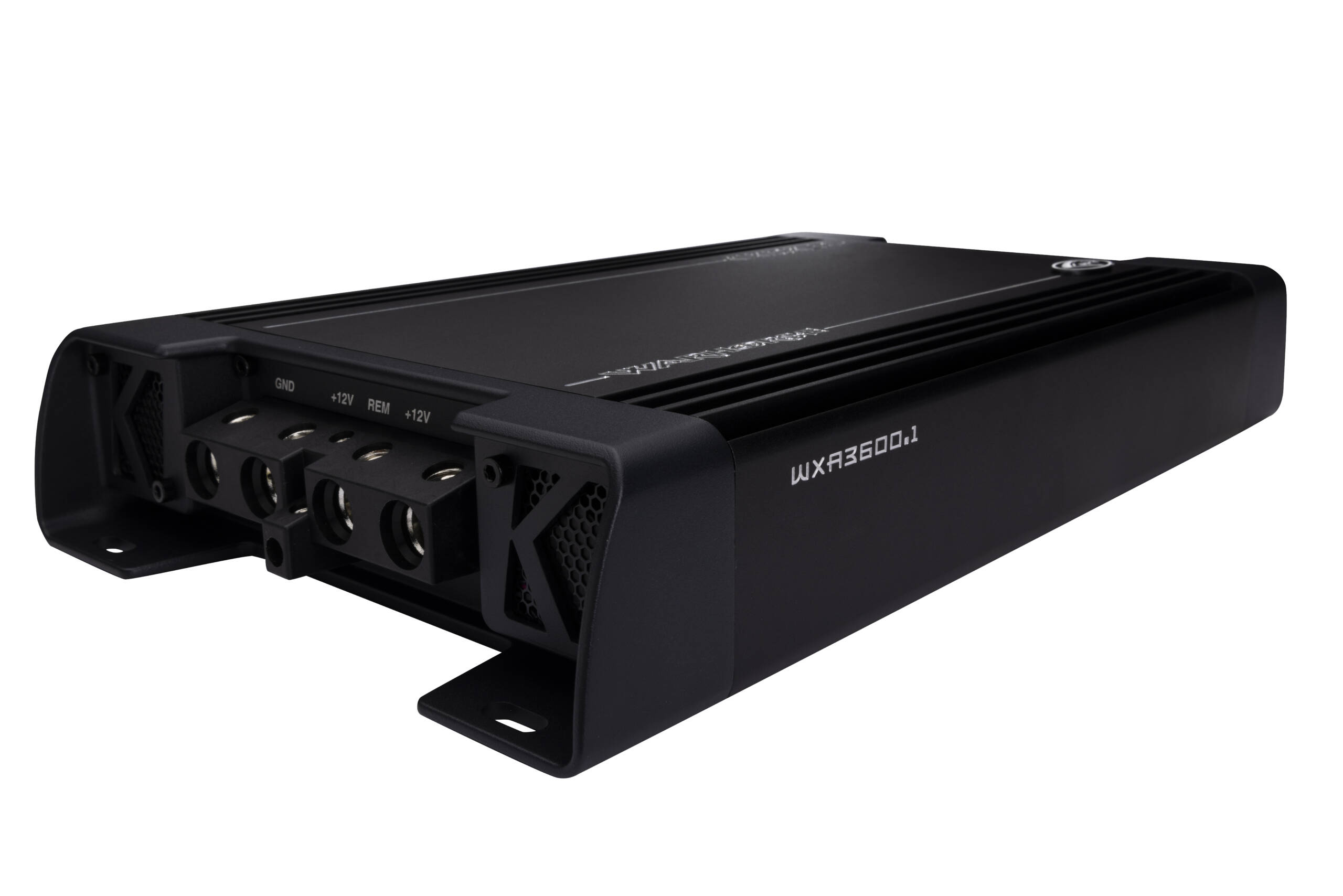

WXA3600.1
WARHORSE 3600.1 white paper with full tech graph data
49WXA36001 Whitepaper PDF
WARHORSE 3600.1 Dimensions
49WXA36001 Product Dimensions PDF
*RMS Power (watts/ch) 1 Ohm Mono (@ 14.4v, <1%THD)
3600×1
*RMS Power (watts/ch) 2 Ohm Mono (@ 14.4v, <1%THD)
2500×1
*RMS Power (watts/ch) 4 Ohm Mono (@ 14.4v, <1%THD)
1400×1
**Dynamic Power (watts)
5000
Frequency Response (Hz)
10-200
Signal-to-Noise Ratio (dB; A-weighted, re: rated power)
>90
Signal-to-Noise Ratio (dB; ref: 1W output)
>70
Input Sensitivity
low level 125mV-5V
high level 1V-40V
Selectable Electronic Crossover
Variable Low-pass 50-200Hz, 24dB/octave
Subsonic Filter
Defeatable @ 15Hz, 24dB/octave
Competition Mode
warhorse-competition-mode.pdf
Dimensions (in, cm)
H – 2-9/16, 6.5
W – 9-1/8, 23.2
L – 15-3/8, 39.1
Warranty
When purchased from an Authorized KICKER Dealer or kicker.com, KICKER warrants this product to be free from defects in material and workmanship under normal use for a period of TWO (2) YEARS from date of original purchase. – Complete warranty information here.
*RMS Power test @ 14.4v @ _ 1% THD+N, Audio Precision analyzer, see www.kicker.com/amp-power-testing for details.
**Dynamic Power test @ 14.4v @ _ 10% THD+N, Audio Precision APx500 analyzer, see www.kicker.com/amp-power-testing for details.
