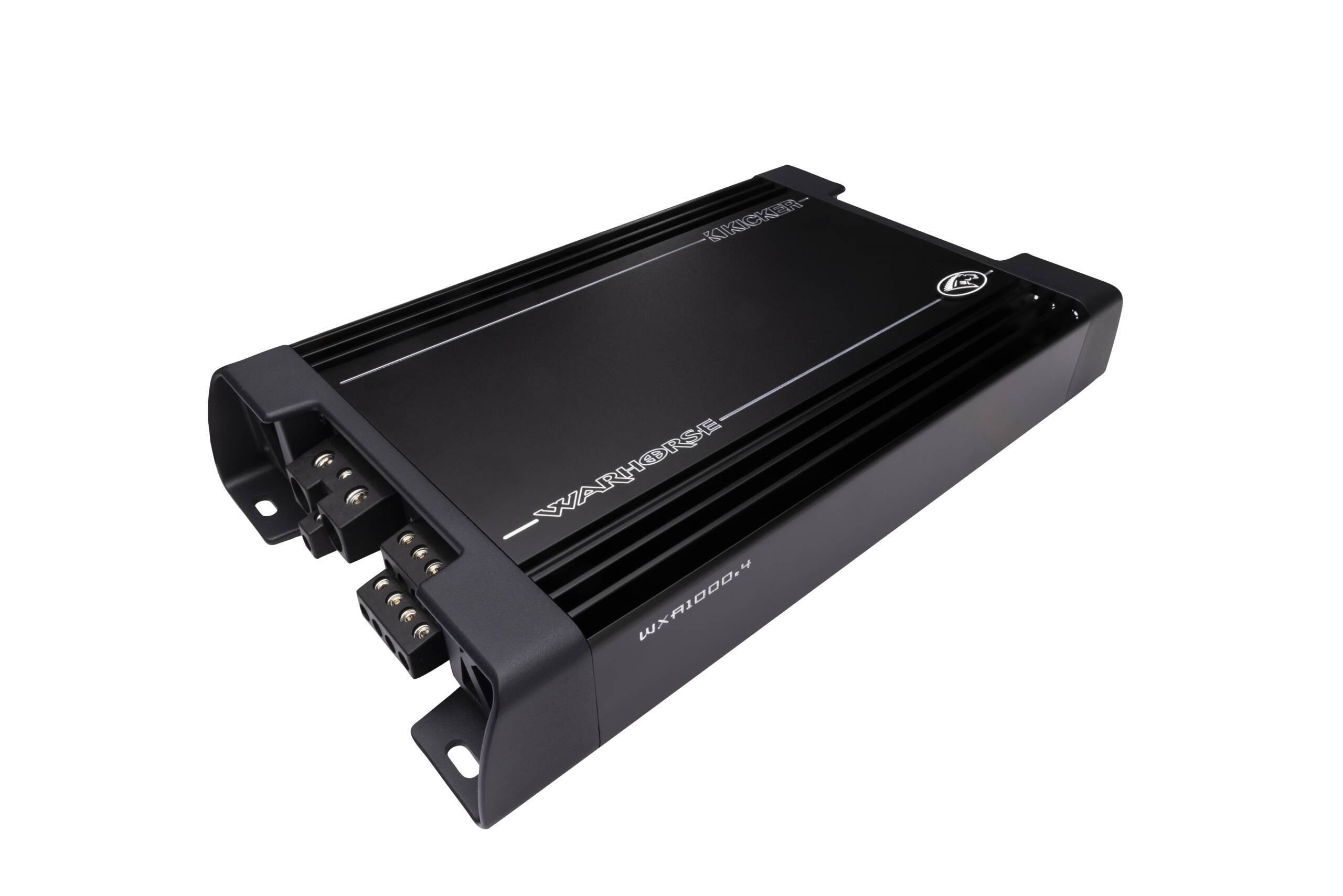

49WXA1000.4

$1,699.00

Full-Range Riot

Engineered completely in-house by KICKER R&D
Features extreme reliability under intense power and overall use
Ultra-efficient, half-bridge Class-D design
Fully start/stop compliant – operational to 6.5V
1/0 Power and Ground inputs to ensure you get the power you paid for
Capable of daisy-chaining remote power across multiple amps
Includes a heavy-duty, magnetic-mount diagnostic tool for monitoring voltage measurements and amp protection status
Fully compatible with most factory or aftermarket source units (with FIT+™ differential inputs)
WARHORSE Install Scenarios: WarhorseInstallScenariosv2.pdf
REMOTE/DIAGNOSTIC TOOL SURFACE MOUNT TEMPLATE
REMOTE/DIAGNOSTIC TOOL FLUSH MOUNT TEMPLAT

Out of stock

Categories: , , Tags: , , Product ID: 3990

Description

Specifications
MODEL
WXA1000.4
WARHORSE 1000.4 white paper with full tech graph data
49WXA10004 Whitepaper PDF
WARHORSE 1000.4 Dimensions
49WXA10004 Product Dimensions PDF
*RMS Power (watts/ch) 2 Ohm Stereo (@14.4V, <1% THD)
450×4
*RMS Power (watts/ch) 4 Ohm Stereo (@14.4V, <1% THD)
250×4
*RMS Power (watts/ch) 4 Ohm Bridged Mono (@14.4V, <1% THD)
900×2
**Dynamic Power (watts)
2000
Frequency Response (Hz)
10-20k
Signal-to-Noise Ratio (dB; A-weighted, re: rated power)
>90
Signal-to-Noise Ratio (dB; ref: 1W output)
>70
Input Sensitivity
low level 125mV-5V
high level 1V-40V
Selectable Electronic Crossover – AMP 1
Off/HP/LP; 24dB/octave BW, variable 10-5kHz w/ 10X switch;
Selectable Electronic Crossover – AMP 2
Off/HP/LP/BP; 24dB/octave BW, lo-pass 100-5000Hz, hi-pass 10-500Hz
Dimensions (in, cm)
H – 2-9/16, 6.5
W – 9-1/8, 23.2
L – 15-3/8, 39.1
Warranty
When purchased from an Authorized KICKER Dealer or kicker.com, KICKER warrants this product to be free from defects in material and workmanship under normal use for a period of TWO (2) YEARS from date of original purchase. – Complete warranty information here.
*RMS Power test @ 14.4v @ _ 1% THD+N, Audio Precision analyzer, see www.kicker.com/amp-power-testing for details.

**Dynamic Power test @ 14.4v @ _ 10% THD+N, Audio Precision APx500 analyzer, see www.kicker.com/amp-power-testing for details.
