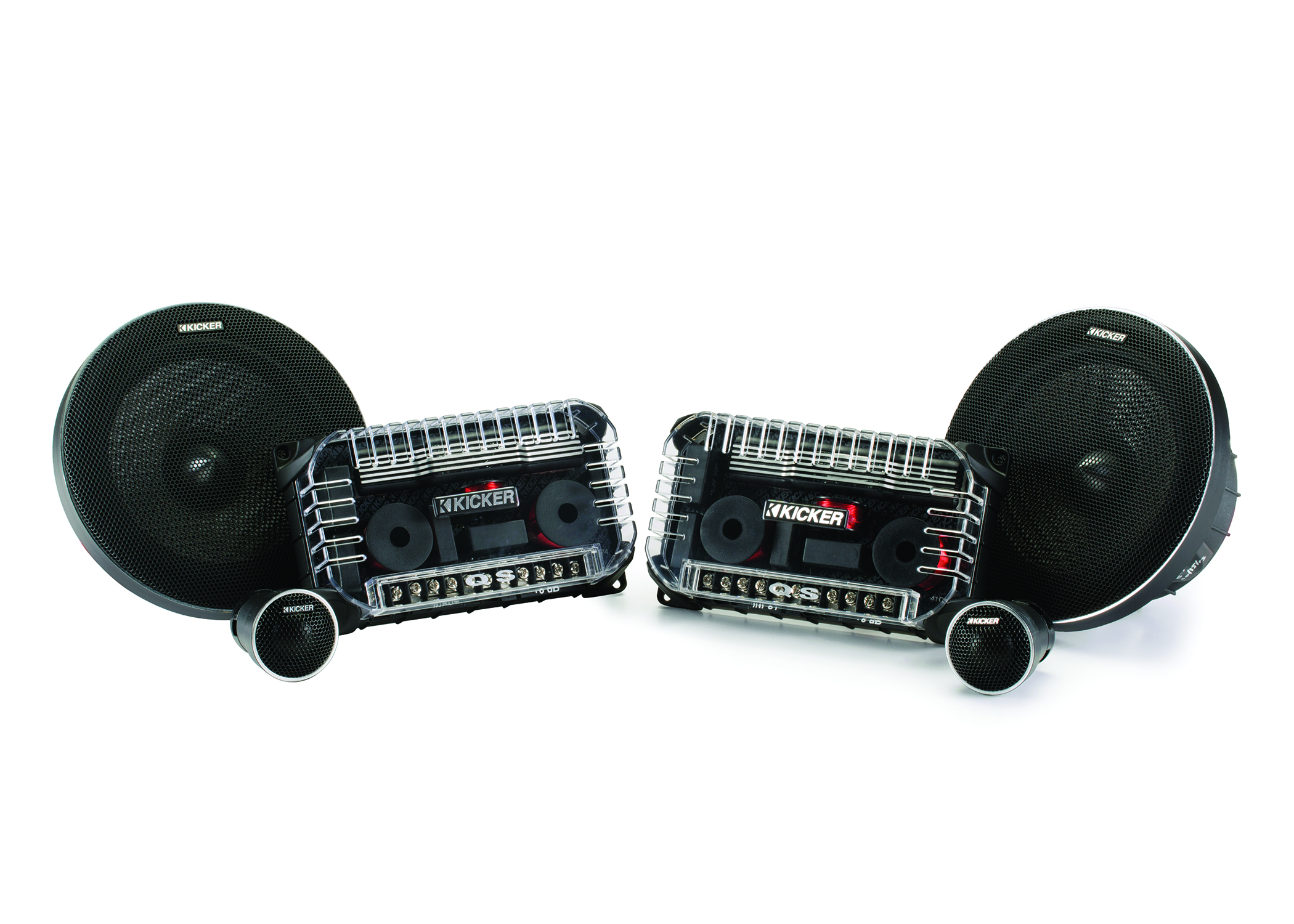

QSS674 – 6.75″ (165mm) 100 Watts RMS Components

$789.00

QS 6-3/4 Inch Separates are a matched component system, built for pure sonic reproduction.

Producing realism in a performance is your passion. The QS Series crossovers allow you to use a single amplifier channel, or use bi-amplification for even more flexibility and control.

These QS separates work best with 100 watts of recommended power. See below for more details.

SKU: QSS674 Categories: , , Product ID: 1774

Description

Specifications
Woofer (in., mm)
6-3/4, 165
Tweeter (in., mm)
1-3/16, 30
Tweeter dome material
Tetoron®
Rated Impedance [Ω]
4
Peak Power Handling [ Watts]
200
Continuous Power Handling [Watts RMS]
100
Sensitivity [1W, 1m]
87dB
Frequency Response [Hz]
40-22k
Woofer Mounting Hole Diameter [in, mm]
5-7/16, 138
Woofer Bottom Mount Depth [in, mm]
2-1/2, 63.5
Flush Mount Tweeter Hole Diameter [in,mm]
1-13/16, 46
Flush Mount Tweeter Depth [in,mm]
1-1/8, 29
High Pass [dB], at Frequency [Hz]
24, 2800
Low Pass [dB], at Frequency [Hz]
12, 2800
High Frequency Output Attenuation [dB]
0, +3, +6

Additional information

Weight 6.3 kg
Dimensions 333 × 483 × 146 mm
